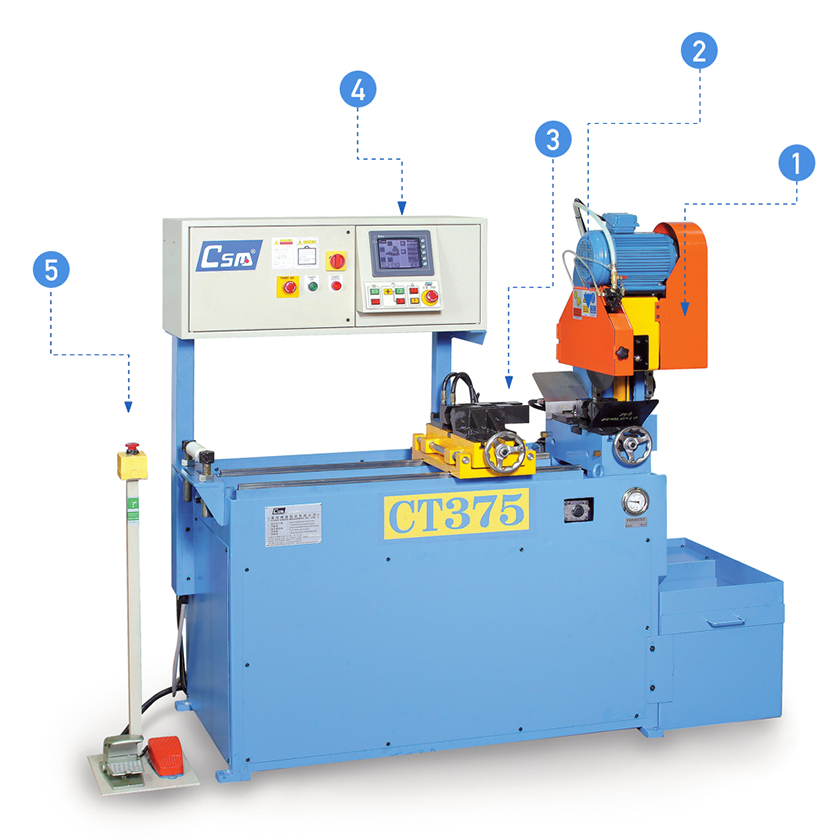

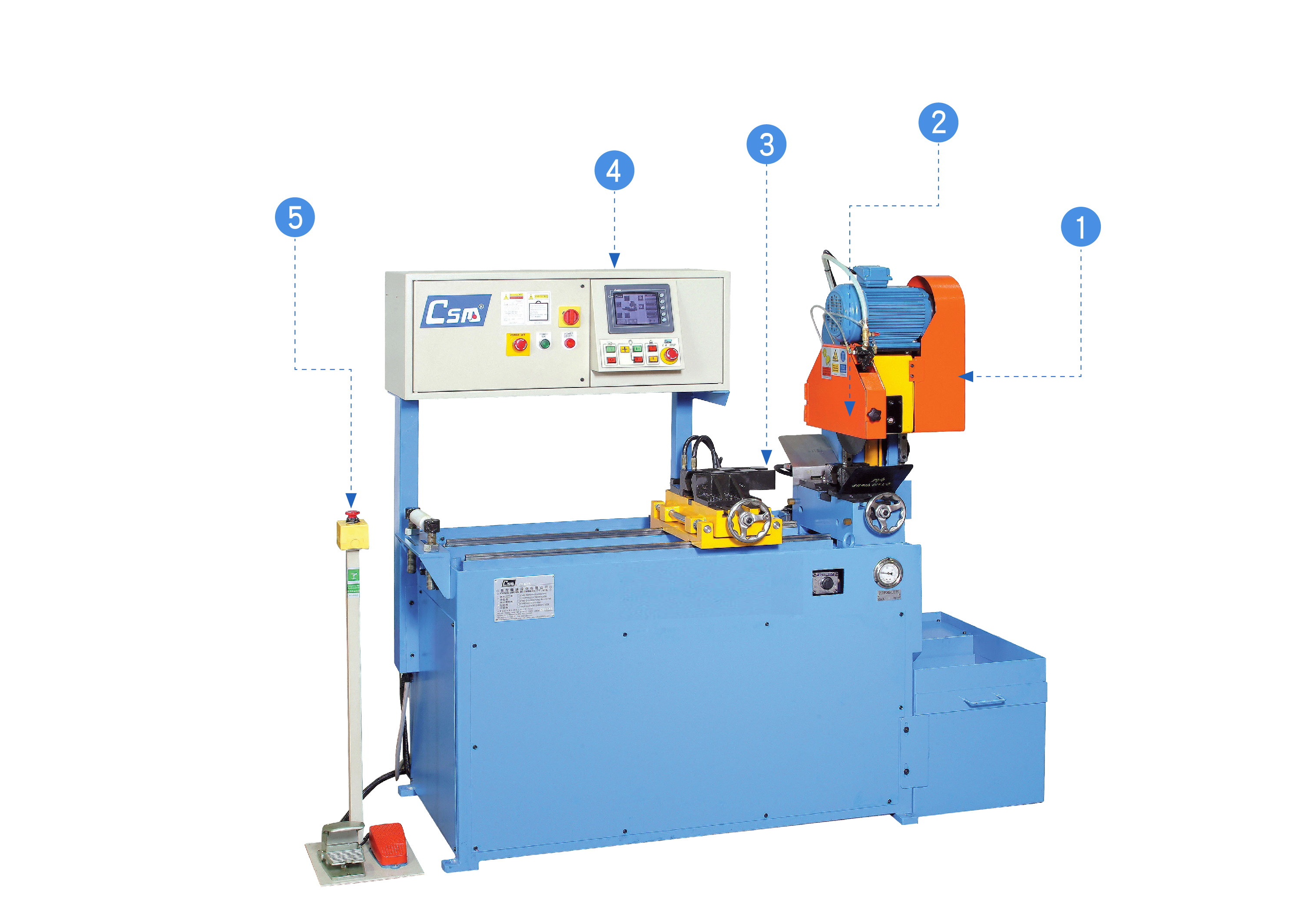

- Down feed by hydraulic
-
- Cutting : by aid of planetary transmission gears, assure energy economic.
- Circular saw blade : OD 250~325mm
-
- Clamping by hydraulic
- Feeding by servo motor
- PLC controller with touch screen display
- Standing pedestal serves emergency stop and remote control
|
specification |
unit |
CT325 L-type |
CT325 M-type |
CT325 H-type |
|
mild Steel (S=40kgf/mm²) |
mm |

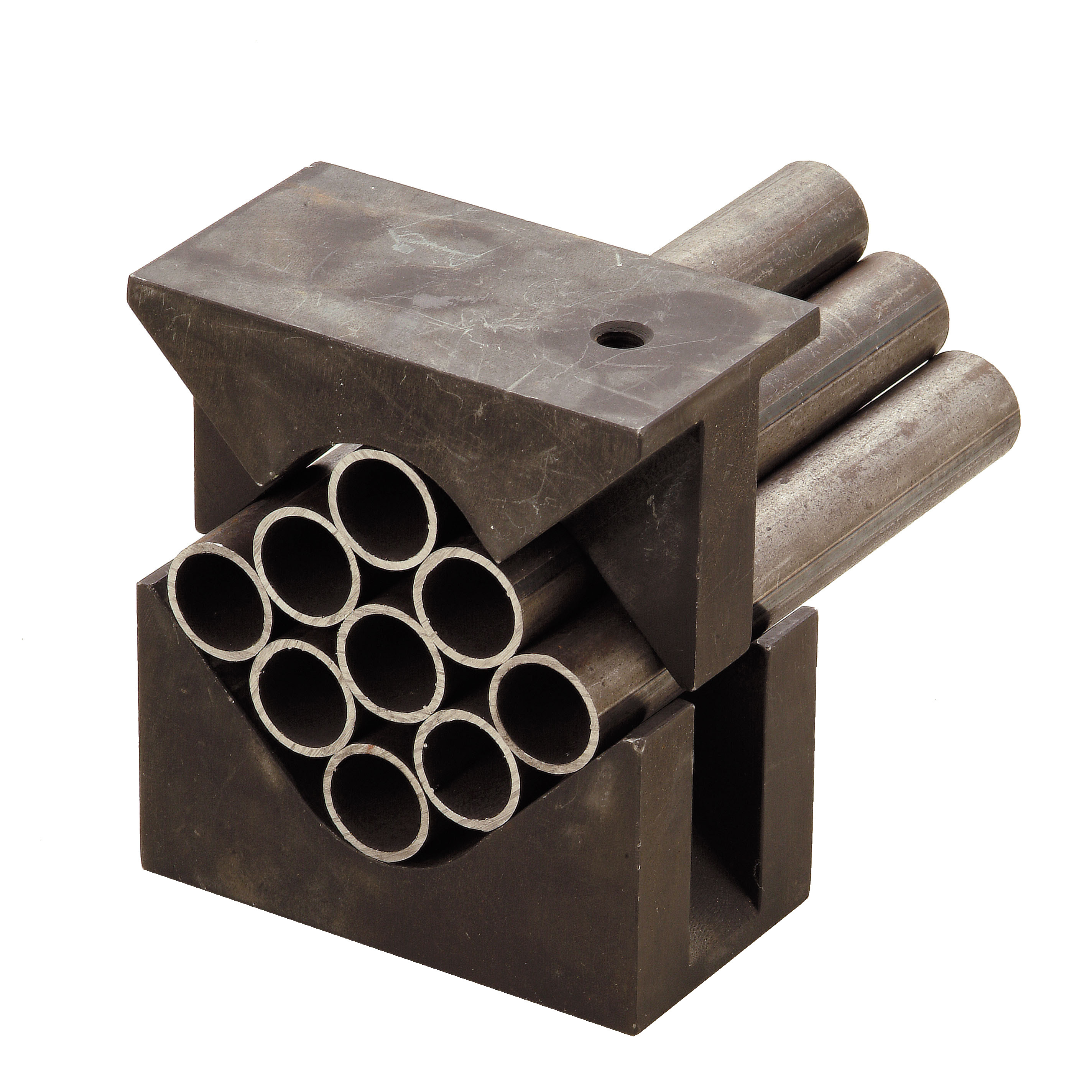

standard vises >OD44~101.6 customized vises >OD12~63.5 |
standard vises >OD44~101.6 customized vises >OD12~63.5 |
standard vises >OD44~101.6 customized vises >OD12~63.5 |
|
total Power |
HP |
3.8 |
3.8 |
3.8 |
|
spindle rotation rate |
rpm |
22~62 |
47~135 |
80~220 |
|
saw blade |
mm |
OD 250~325 |
OD 250~325 |
OD 250~325 |
|
feeding speed |
mm/s |
1000 |
1000 |
1000 |
|
feeding accuracy |
mm |
±0.1 |
±0.1 |
±0.1 |
|
working height |
mm |
950 |
950 |
950 |
|
length |
mm |
1700 |
1700 |
1700 |
|
width |
mm |
760 |
760 |
760 |
|
height |
mm |
1600 |
1600 |
1600 |
|
weight |
kg |
800 |
800 |
800 |
